DC POWER Plugs and Jacks, preassembled cords page

Click on photos for larger view. The links below will open a catalog page listing the products described in the chart. These links will open an Adobe file, which requires a recent copy of Acrobat©  Reader. Download may be slow on dial-up connections, a minute or more depending upon Internet traffic conditions. The downloaded page may be printed using your Acrobat© Reader Software.

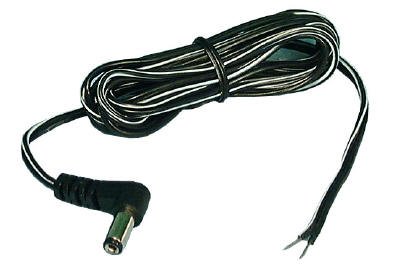

Coaxial Plug Power Cord assemblies

Molded Male connectors on 6-foot cords with ends stripped and tinned on the other. Color: Black. (Page 62)

 IN-LINE Power JACKS
 Solder terminals, integral strain relief. Color: Black Six sizes
(Page 62)
Panel Mounting DC Jacks
(metal housing)

Eight sizes available, accepts the corresponding Coaxial DC Power Plug.
(Page 62)

Panel Mounting DC Jacks
(plastic housing)

Nine sizes and types available.

(Page 62)
Printed Circuit Mount DC Jacks
Nine types and sizes available.

(Page 62)





DC POWER PLUGS
EIAJ RC-5320 STANDARDS COMPLIANT. Ten sizes available.



(Page 62)
COAXIAL POWER PLUGS
for DC Power

Many sizes and right angle, locking types and others available on this page.

(Page 63)



 COAXIAL POWER PLUG ADAPTOR

A 3.5mm phone jack adaptor to DC Power plug. Permits use of battery eliminators that have a miniature phone plug with equipment that have a coaxial power jack. Several sizes.

(Page 63)
COAXIAL POWER JACK
Behind panel mount type.

(page 63)		 INTERCHANGEABLE DC PLUGS (ADAPTORS)
Adaptors fit the cord mounted jack on Philmore AC/DC battery eliminators. Dozens of sizes listed here.

(Page 63)
DC POWER EXTENSION CORDS
(Page 63)		 Philmore has and extensive collection of DC power supplies available. Call them battery-eliminators, "wall adaptors", AC/DC Adaptors or "wall warts", or by another name, you can probably find the one you need in the Philmore Product Group.
